TCI Complete Chassis, Dropped Axle, Plain Package, 1933-1934 Model B

• Small Block Engine Mounts Pre-Mounted
• Automatic Transmission Mounts Pre-Mounted
• Tubular Front Axle
• Panhard Bar Kit
• Mono Spring With 1" Rear 4-Bars
• Adjustable RideTech Coilovers
• Vega Steering Box
• Front & Rear Sway Bar Kits
• Panhard Bar Assembly
• 11" Smooth/Vented Brake Rotors
• Big-Bore Brake Calipers
• Power Brake Pedal Assembly
• Stainless Steel Hardlines Pre-Plumbed
• Stainless Steel Flexlines Pre-Plumbed
• 9" Rear Housing With Nodular Iron Case
• 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30 Or 4.56 Gear Ratio
• 31-Spline Axles
• 11" Drum Brakes
• All Crossmembers & Body/Hood Latch Brackets
• Frame Retains The Factory Profile For Easier Of Mounting The Body
• MIG & TIG Welded For The Highest Quality
• Limited Lifetime Manufacturer Warranty
• Proudly Made In The U.S.A.

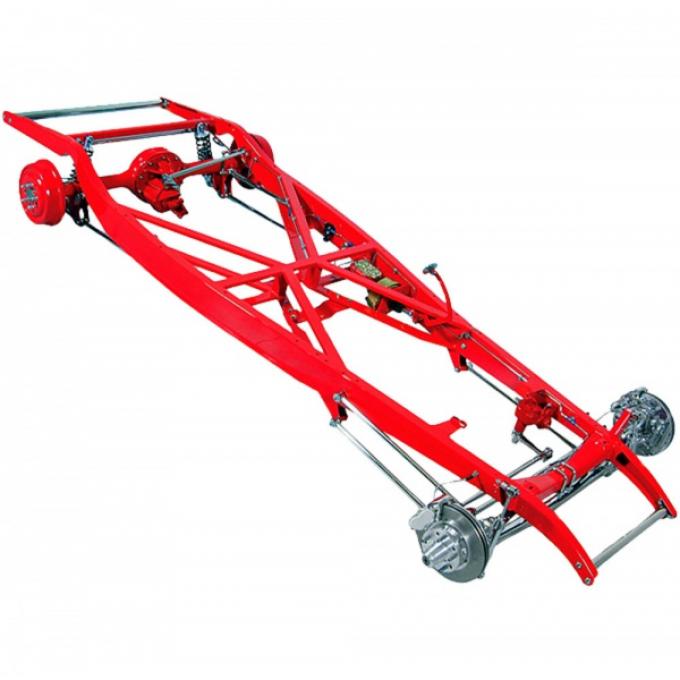

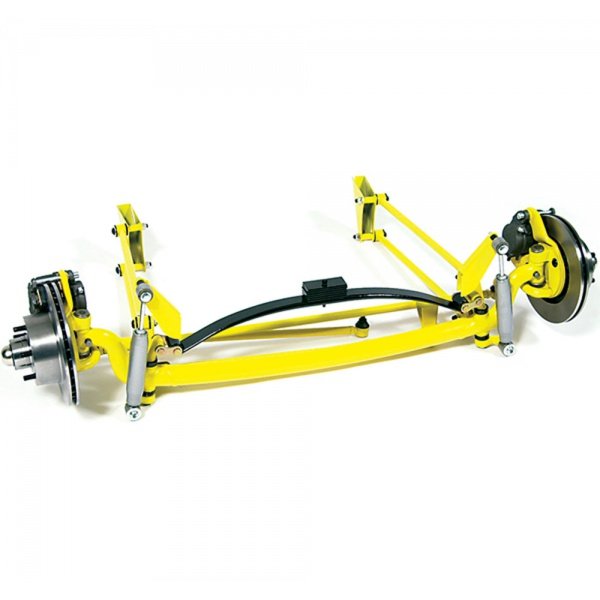

To build the best, start with the best! This 1933-1934 Ford complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. The frame is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. TCI uses a dropped tubular front axle in conjunction with a mono spring and RideTech shocks for the front suspension, and rear suspension uses a traditional 4-link set up with adjustable coilovers.

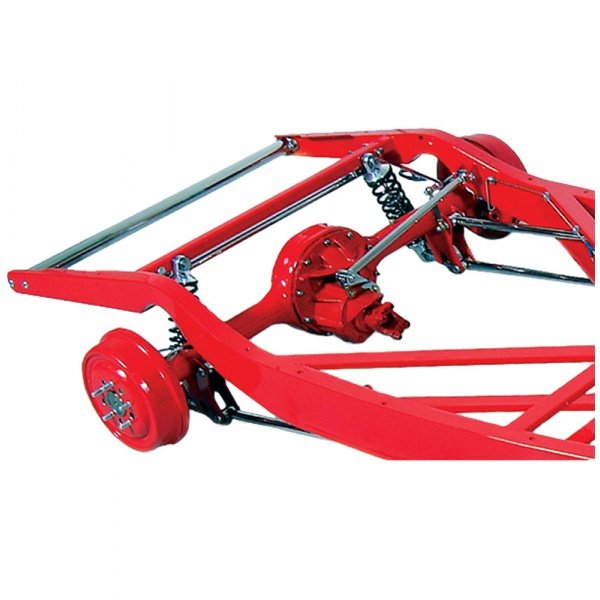

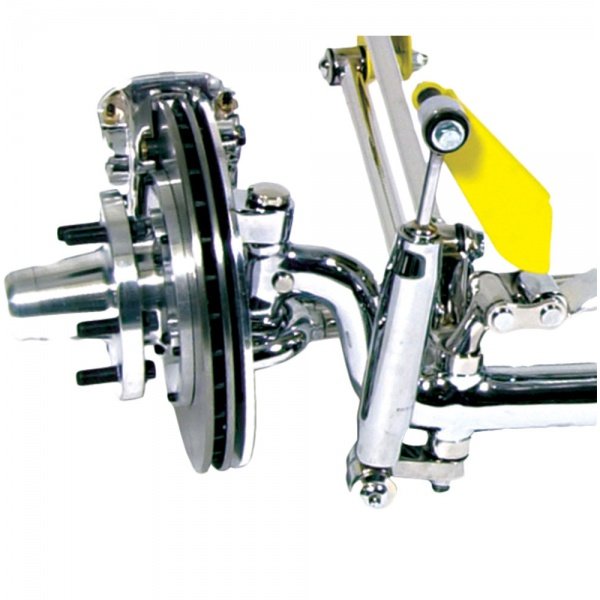

The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and is proudly made in the USA! Talk about a solid foundation to build off of!

NOTE: "Show Package" displayed (powder coating is not included).
