TRUCK

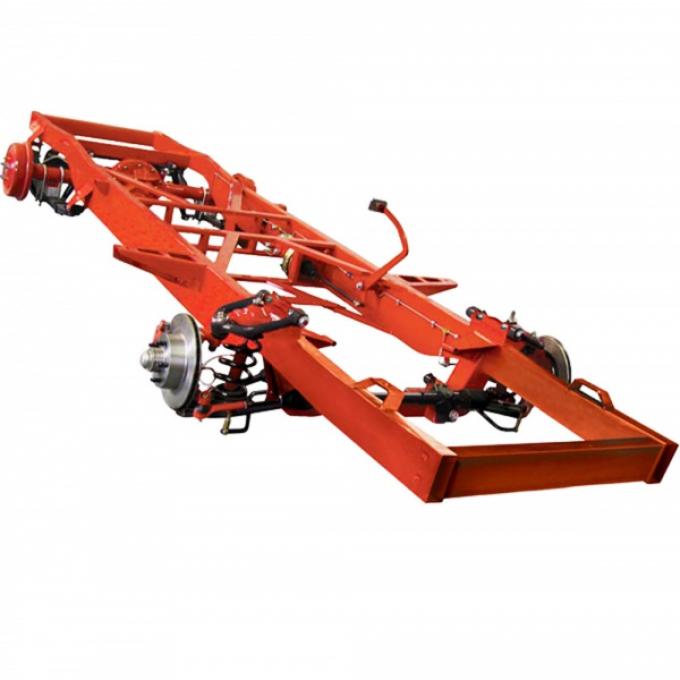

To build the best, start with the best! This 1948-1952 Ford truck complete chassis has been engineered for strength, safety, performance, drivability, and rideability. The complete chassis is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. The frame features full-length boxed rails with rectangular cross-members for added strength and rigidity. The redesigned cross-member also allows more room for exhaust system clearance. Big-bore brake calipers and large 11" vented brake rotors in the front provide extra stopping power and safety.

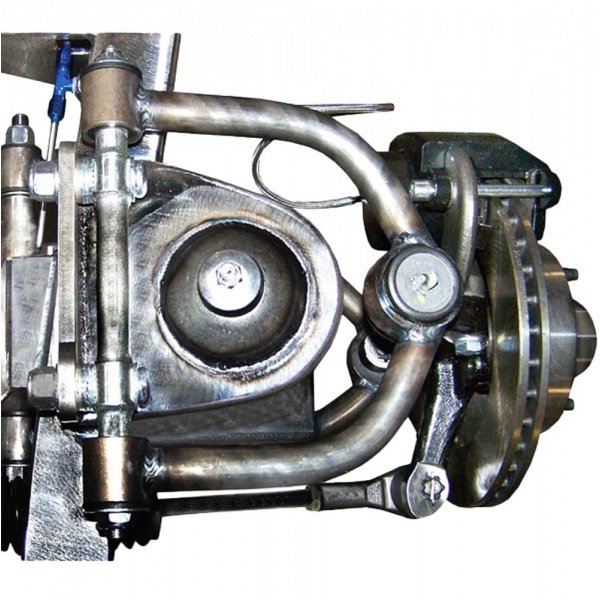

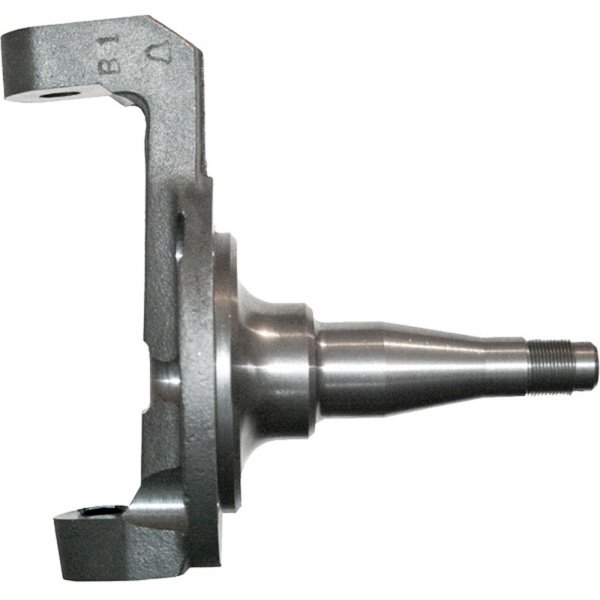

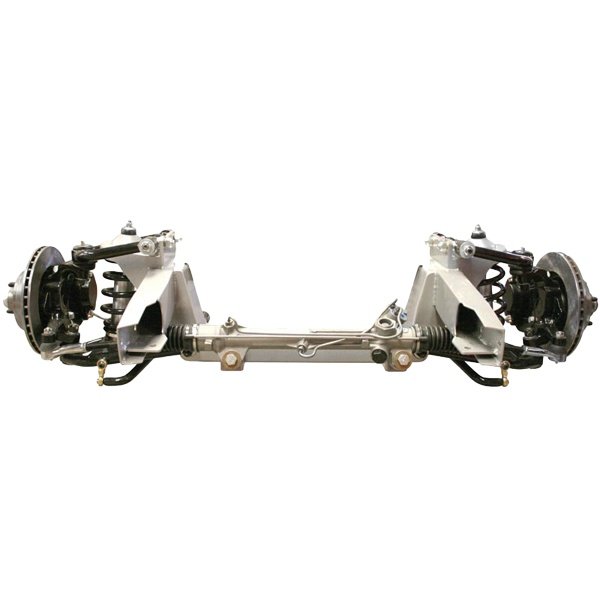

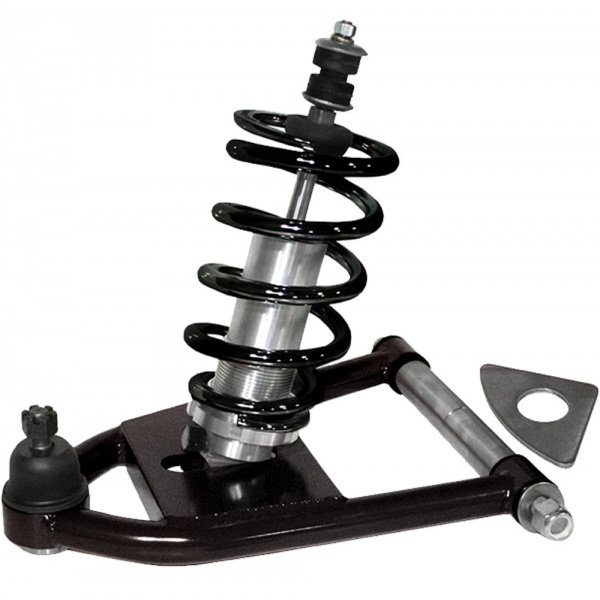

TCI's custom independent front suspension system is a no-nonsense, no-compromise performance set-up based on their own custom spindle design. The geometry is specifically engineered to maximize cornering grip, yet provide great street manners for everyday cruising. Alignment adjustments are a snap using the offset stainless steel adjusters, and the ride height can be easily modified with the billet aluminum rebound-adjustable RideTech coilovers.

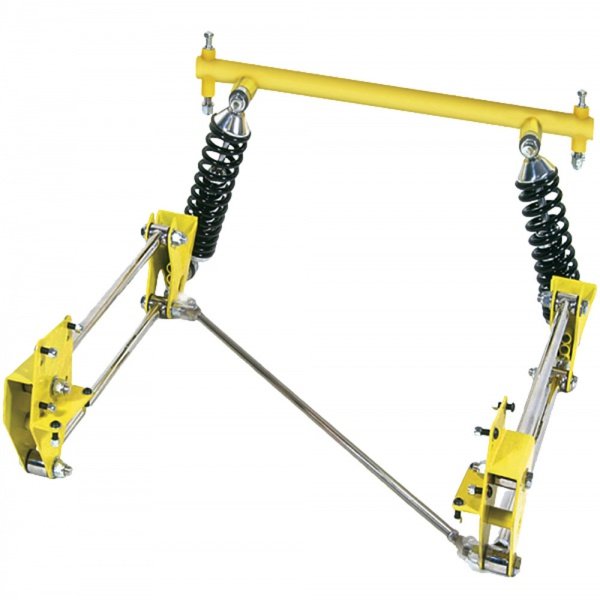

The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and all parts are proudly made in the USA! Talk about a solid foundation to build off of!
NOTE: "Show Package" displayed (powder coating is not included).
| Make | Model | Years |
| Ford | F-1 | 1948 - 1952 |
| Ford | F-2 | 1948 - 1952 |
| Ford | F-3 | 1948 - 1952 |
| Ford | Ford | 1949 |
