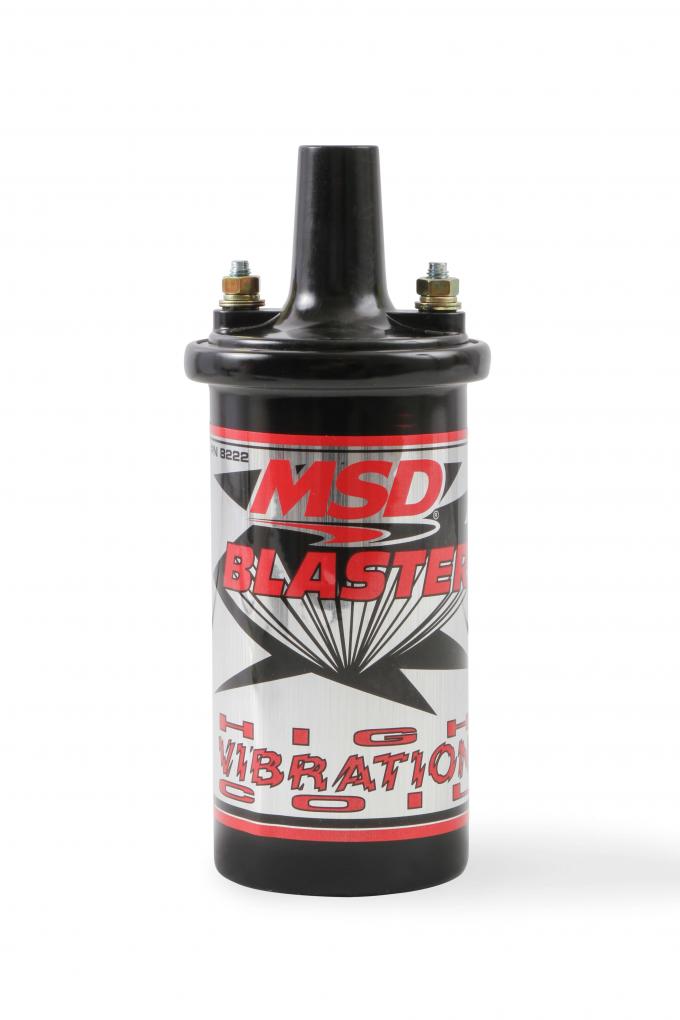

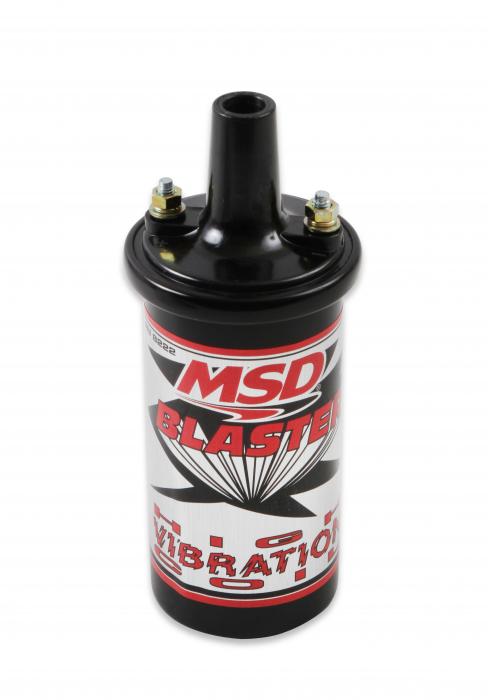

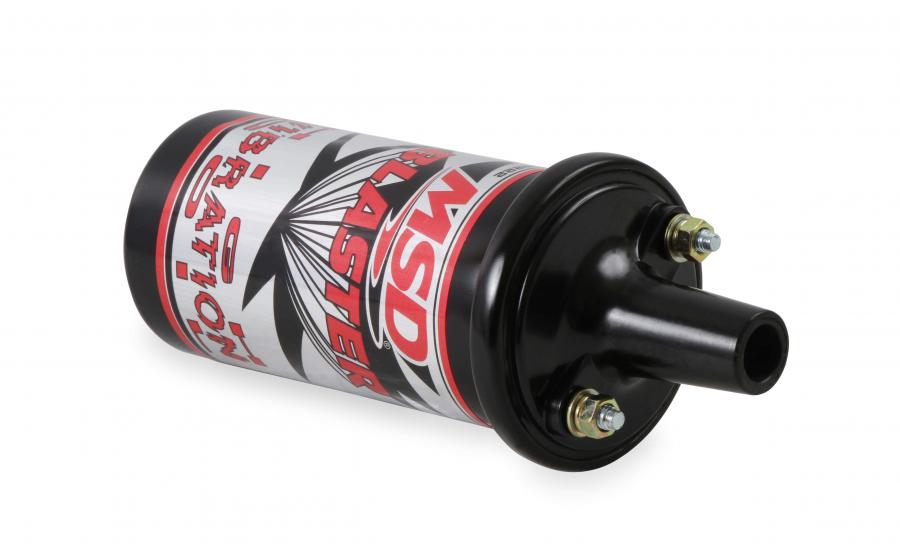

MSD Ignition Coil, Blaster Series, High Vibration, Black 8222

MSD Ignition Coil, Blaster Series, High Vibration, Black 8222
MSD Ignition Coil, Blaster Series, High Vibration, Black 8222MSD Ignition Coil, Blaster Series, High Vibration, Black 8222MSD Ignition Coil, Blaster Series, High Vibration, Black 8222MSD Ignition Coil, Blaster Series, High Vibration, Black 8222MSD Ignition Coil, Blaster Series, High Vibration, Black 8222
$94.99 ea
NEWARRIVING SOONEstimated Ship Date 11/18/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/31/2024
Model: 4017542
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The sturdy metal housing of the High Vibration Coil is completely potted with a premium grade epoxy to completely encase the coil's primary and secondary windings. In applications such as off-road, marine, or other harsh conditions, the MSD Blaster High Vibration Coil is the best choice. This protects the coil's internal components from high and low-frequency vibrations that are commonly experienced in racing. The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.
Features:
  • Metal canister is encased with epoxy to protect the windings from high vibration applications
  • Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • CARB E.O. Approved
CARB EO: D-40-37
Installation Notes:
CARB EO: D-40-37
About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
8202.pdf144.91KB

Specifications:

C.A.R.B. EO # D-40-37
Color Black
Emission Code 1
Inductance 8 mH
Maximum Voltage 45,000 Volts
Part Type Ignition Coil
Peak Current 140 mA
Primary Resistance .7 OHMs
Product Type Ignition Coil
Proposition 65 www.P65Warnings.ca.gov
Secondary Resistance 4.5K OHMs
Spark duration 350 uS, 350 uS
Turns Ratio 100:1
Warranty Limited 1 Year Warranty
Weight 2.00 Lbs
