MSD Digital-6AL Ignition Controller 6425

Name: MSD Digital-6AL Ignition Controller 6425
Brand: MSD
SKU: 2033872
Price: 533.99 CAD
Availability: InStock

$533.99 ea

NEWARRIVING SOONEstimated Ship Date 10/18/2023 (If Ordered Today)10482 available from HOLLEY PERFORMANCE PRODUCTS as of 09/26/2023

Model: 2033872

0 reviewsWrite a Review Add to Wish List

Supplier has not provided any fitment data for this product.

CALL US
855.444.6872

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). For 2011, the bar has been raised even higher as we introduce the all new Digital 6AL Ignition Control! MSD started with a clean slate and drew up plans for an all new housing. We kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter was moved right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments. Inside the Digital 6AL you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the new Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD's proven multiple spark series is a win-win situation!

Features:

High Output w/530 Volts And 135Mj Of Spark Energy
Efficient components use less current to produce more power
Set An Rpm Limit w/Two Rotary Dials In 100 Rpm Increments
Built-in LED for system checks

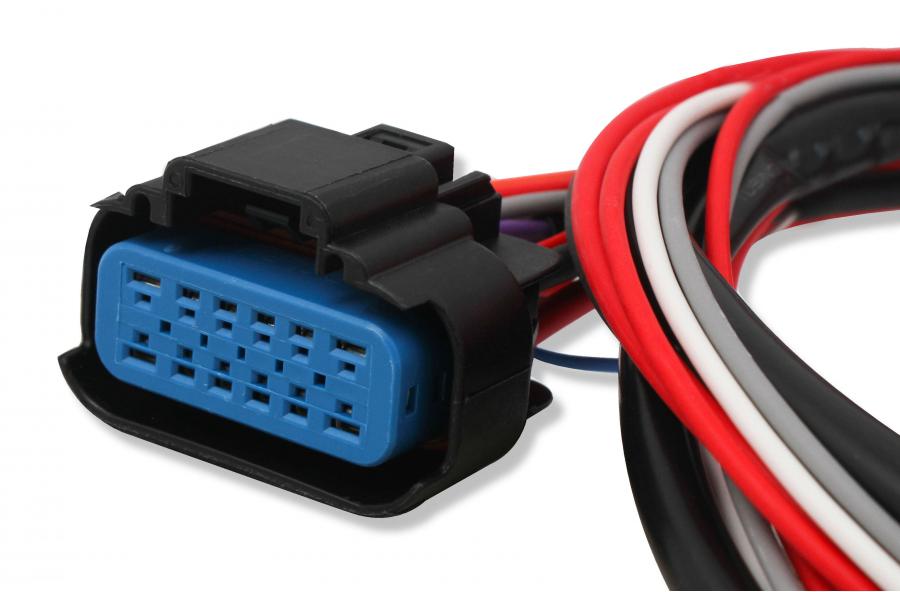

All wires exit through a locked; sealed connector
Compatible w/4/6/8 Cylinder Engines

Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle

Installation Notes:

CARB EO: D-40-43

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name	File Size
frm31841_6a_6al_flyer.pdf	15.18MB
6425.pdf	1.43MB
6425_add.pdf	64.07KB

Videos:

Specifications:

Color	Red
Current Draw	1.1 Amp per 1000 RPM
Emission Code	1
Features	Rev Limiter
Part Type	Ignition Control Module
Primary Voltage	520-540
RPM	11000
RPM Range	11,000 RPM
Secondary Voltage	45000
Spark duration	20 Degree Crankshaft Rotation
Spark Energy	135-145 mJ per spark
Voltage	12-15 V; 7 V Start
Voltage Required	12-15 Volts, 7 Volt Start
WARNING CA Proposition 65	WARNING: Cancer and Reproductive Harm
Weight and Size	1.7 lbs., 8"L x 4"W x 1.825"H
