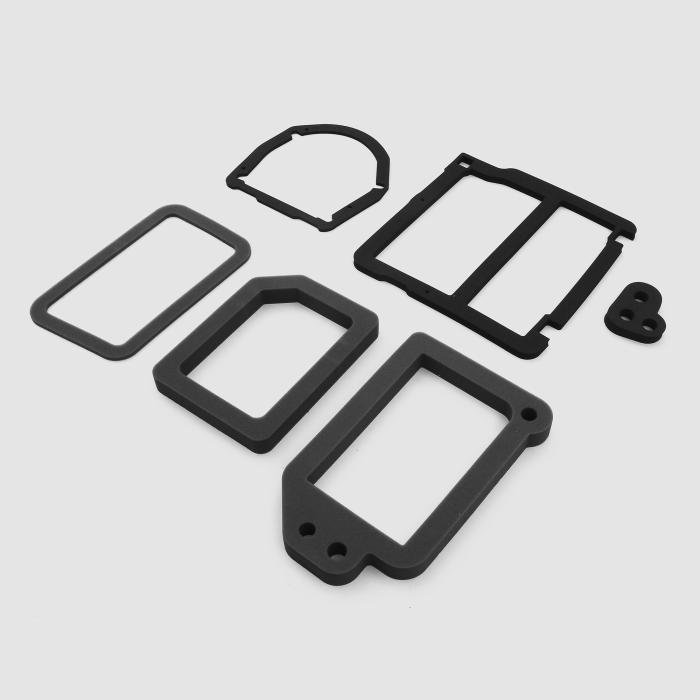

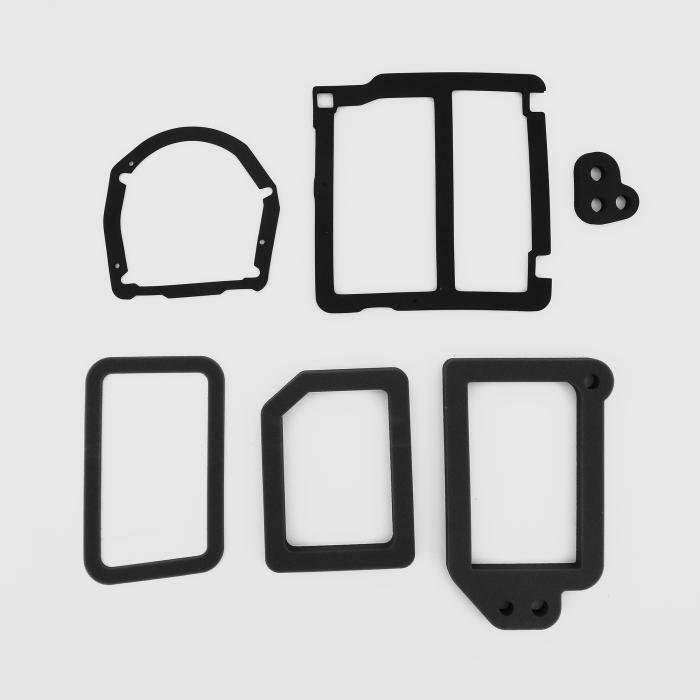

DMT AC heater box rebuild foam seals for all 1980-86 F series pickup or Bronco. Reverse engineered in CAD and laser cut.

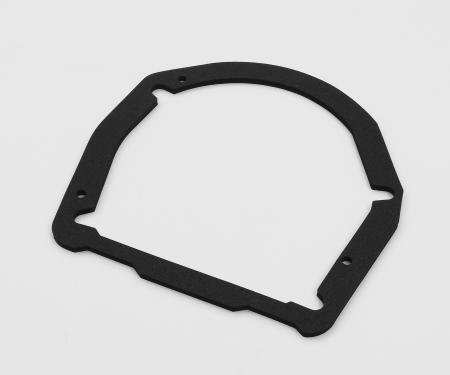

Blower Motor to Engine AC Heater Box Seal (Engine Side) - .187 foam rubber - Ford part# D9AZ-18N260-A
AC Heater Box Air Intake to Firewall Seal (Engine Side) - .375" foam rubber - Ford part# E5TZ-19B762
Heater Core Tubes to Firewall Seal (Interior Side) - .625" foam rubber
Dash Ducts to Main Interior Plenum Seal (Interior Side) - 1" charcoal foam
Main Interior Plenum to Firewall Seal (Interior Side) - 1" charcoal foam
AC Heater Box Air Exhaust to Firewall Seal (Engine Compartment Side) - .25" charcoal foam
1980 80 1981 81 1982 82 1983 83 1984 84 1985 85 1986 86 F100 F150 F250 F350 Bronco
Material
CORRECT thickness, modern material, foam and foam rubber pieces
In 1977, at 15, my first car was a 70 Barracuda I bought for $600 from my dad's co-worker at Chrysler Huber Ave Foundry. Tawny gold, 318, hub caps. Before I could "legally" drive it it had headers and a 4bbl. Had a couple other Mopars after this as a young man.
25 years later it was time to get another Mopar. After looking for 2 years I found a 1971 B5 blue Challenger right here in Michigan. 318 and hubcaps again. This time it cost over 10x as much, $6500. Didn't take long to add wheels, new leaf springs, 340 6bbl, etc. A year or two later I decided to completely redo the car. Had it media blasted and painted B5 blue again BUT when I went to put it back together I found there were no good body gaskets sets for Mopars. The gasket making journey began.
In 2004 I first made a kit to redo my Non A/C heater box using a laser engraver/cutter that I had for another side business. I showed the guys on Moparts and quickly had a few orders. I obviously made all the gaskets for my car because I had all the parts for templates. Many parts fit the other E body models so I soon had all the E body gaskets, then more body style, then more heater box kits and the rest is history.
| Make | Model | Years |
| Ford | B-200 Panel | 1986 |
| Ford | Bronco II | 1984 - 1990 |
| Ford | Bronco | 1980 - 1996 |
| Ford | Courier | 1980 - 1982 |
| Ford | Explorer | 1991 - 1996 |
| Ford | F-100 Ranger | 1996 |
| Ford | F-100 | 1980 - 1983 |
| Ford | F-150 | 1980 - 1996 |
| Ford | F-200 | 1986 - 1991 |
| Ford | F-250 | 1980 - 1996 |
| Ford | F-350 | 1980 - 1996 |
| Ford | Ranger | 1983 - 1996 |
